Custom Titanium Bike Sizes/Geometry
| Bike Sizes/Geometry | |||||||
|---|---|---|---|---|---|---|---|
| XS | S | M | L | XL | XXL | ||

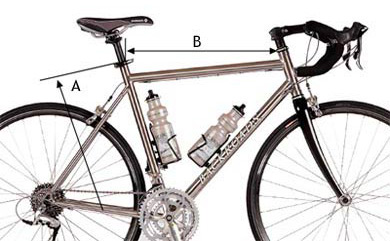

| Frame Size (A) | 38cm | 45cm | 53cm | 56cm | 59cm | 63cm | |
| Suggested Rider Height | 4'11"-5'2" | 5'2"-5'5" | 5'5"-5'9" | 5'9"-6'1" | 6'1"-6'4" | 6'4"-6'6" | |
| Top-Tube Length, Horizontal (B) | 518.9mm | 518.5mm | 543.3mm | 566.8mm | 583.4mm | 615mm | |
| Seat-Tube Length, B-B Center to mid top tube | 320mm | 390mm | 470mm | 500mm | 530mm | 570mm | |
| Chain-Stay Length | 425mm | 425mm | 425mm | 425mm | 425mm | 425mm | |
| Seat-Tube Angle | 74.5° | 74.5° | 74° | 73° | 73° | 72.5° | |
| Head-Tube Angle | 71° | 71° | 72° | 72° | 72.5° | 72.5° | |
| Fork Rake | 47mm | 47mm | 45mm | 45mm | 45mm | 45mm | |
| Wheelbase | 998.7mm | 998.7mm | 1008.9mm | 1023mm | 1035.2mm | 1061.7mm | |
| Stand-Over Height | 67.56cm/ 26.6" |
68.58cm/ 27" |
79.76cm/ 31.4" |
82.3cm/ 32.4" |
84.84cm/ 33.4" |
88.9cm/ 35" |
|
| Head-Tube Length | 110mm | 120mm | 145mm | 160mm | 175mm | 205mm | |
| Handlebar Width | 400mm | 400mm | 420mm | 420mm | 440mm | 440mm | |
| Stem Length | 95mm | 95mm | 110mm | 110mm | 110mm | 110mm | |
| Crank Length | 170mm | 170mm | 170mm | 175mm | 175mm | 175mm | |
