Custom Titanium Mountain Bike
| Bike Sizes/Geometry | ||||||
|---|---|---|---|---|---|---|
| XS | S | M | L | XL | ||

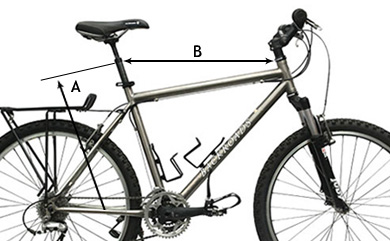

| Frame Size (A) | 14" | 16.5" | 18" | 19.5" | 22" | |
| Suggested Rider Height | 4'11"-5'2" | 5'2"-5'5" | 5'5"-5'9" | 5'9"-6'1" | 6'1"-6'5" | |
| Top-Tube Length, Horizontal (B) | 534mm | 546mm | 565mm | 590mm | 610mm | |
| Seat-Tube Length, B-B Center to mid top tube | 306mm | 369mm | 407mm | 445mm | 500mm | |
| Chain-Stay Length | 425mm | 425mm | 425mm | 425mm | 425mm | |
| Seat-Tube Angle | 74° | 73° | 73° | 72.5° | 72.5° | |
| Head-Tube Angle | 70° | 70° | 70° | 70° | 70° | |
| Fork Rake | 38mm | 38mm | 38mm | 38mm | 38mm | |
| Wheelbase | 1037mm | 1052mm | 1073mm | 1093mm | 1100mm | |
| Stand-Over Height | 67.31cm/ 26.5" |
70.61cm/ 27.8" |
72.4cm/ 28.5" |
76.2cm/ 30" |
80.01cm/ 31.5" |
|
| Head-Tube Length | 11mm | 11.5mm | 12mm | 12.5mm | 14mm | |
| Handle-Bar Width | 600mm | 600mm | 600mm | 600mm | 600mm | |
| Stem Length | 95mm | 95mm | 95mm | 110mm | 110mm | |
| Crank Length | 175mm | 175mm | 175mm | 175mm | 175mm | |
